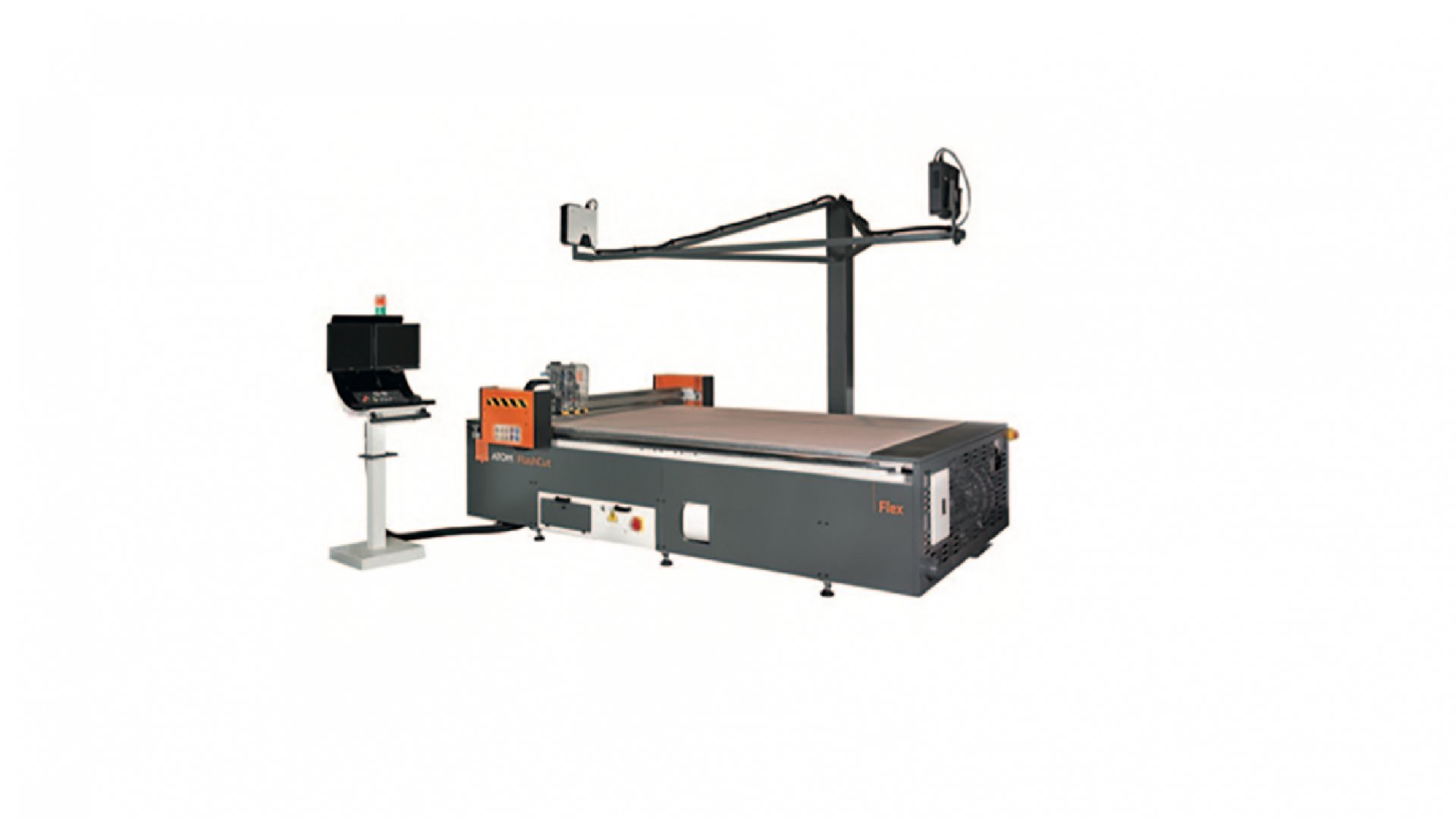

FLASHCUT TWINS 3015

Spesification

CUTTING SYSTEMS FOR COMBINED JOBS. THE SEVERAL SUCCESSFUL INSTALLATIONS WHICH BROUGHT US GREAT EXPERIENCE IN VARIOUS PRODUCTION FIELDS AND PROCESSES, HAVE CONSIDERABLY INFLUENCED THE NEW TWINS DESIGN. THE ROBUST STRUCTURE AND THE STATE-OF-THE-ART ELECTRONICS ALLOWED TO DEVELOP A MODULAR CUTTING HEAD CAPABLE TO PROCESS MATERIAL UP TO 50MM IN THICKNESS, WITH TWO MAIN TOOLS AND SOME OTHER OPTIONAL DEVICES, SUCH AS INKJET PRINTER AND CAMERA TO AUTOMATICALLY ACQUIRE THE SHAPE REFERENCE POINTS. THE DATA RELATED TO MODULES SETTING CAN BE AUTOMATICALLY STORED AND REUSED TO SPEED UP THE TOOL CHANGE OPERATIONS WITH A CONSIDERABLE LABOR COST SAVING AND REMARKABLE CUTTING QUALITY. AVAILABLE IN A WIDE RANGE OF CONFIGURATIONS, WITH STATIC OR CONVEYORIZED CUTTING SURFACE, THE TWINS CUTTING TABLES PERFECTLY MATCH WITH THE MOST VARIABLE PRODUCTION NEEDS.

This modular head with 2 independent vertical axes slots allows to work sequentially, matching a wide range of cutting, creasing, marking and punching tools. It is possible to perform different jobs using the most suitable tool for every specific need on the same shape. In the same cutting session it is also possible to use the inkjet printer and the camera to acquire the cutting reference points.

TO DOUBLE PERFORMANCE AND VERSATILITY
The most classic and best-selling version. The best size for most applications.

The EMH head allows to sequentially or separately use the cutting knife and the router. It is the best solution to combine the process of foam or rigid materials as well as to process a great number of other materials with a single tool. Two different types of routers are available: both turning at high-speed, with a power of 1 or 2.4 kW, air cooling system, variation of the speed rate during the processing and vacuum cleaning system with electric height regulation.

Technical Data

S Model is a static configuration at low operating costs, to cut semi-rigid and rigid materials, particularly in sheets

MODEL WORKING AREA (MM) MAX. ABS (KW) 1P/2P SIZE (MM) WEIGHT (KG)
FC Twin 3015 3050x 1550 13,46 / 23,86 4000x4120x1220 (NP) 1790
FC Twin 3015 3050 x 1550 13,46 / 23,86 4000x5000x3110 (WP) 1790

B Model is a conveyorised models for non-stop cutting of leather, textiles and materials in sheets or rolls.

MODEL WORKING AREA (MM) MAX. ABS (KW) 1P/2P SIZE (MM) WEIGHT (KG)
FC Twin 3015 3050 x 1550 13,46 / 23,86 4880x4160x1220 (NP) 1890
FC Twin 3015 3050 x 1550 13,46 / 23,86 4880x5040x3110 (WP) 1890

B/2 Model is with conveyor belt and integrated off-loading table. Higher productivity and possibility or using the machine in a production line.

MODEL WORKING AREA (MM) MAX. ABS (KW) 1P/2P SIZE (MM) WEIGHT (KG)
FC Twin 3015 3050 x 1550 13,46 / 23,86 7200x4120x1220 (NP) 2290
FC Twin 3015 3050 x 1550 13,46 / 23,86 7200x5000x3110 (WP) 2290

B/3 Model is with conveyor belt and integrated loading and off-loading tables. A real production line , o meet several production requirement.

MODEL WORKING AREA (MM) MAX. ABS (KW) 1P/2P SIZE (MM) WEIGHT (KG)
FC Twin 3015 3050 x 1550 13,46 / 23,86 9470x4120x1220 (NP) 2490
FC Twin 3015 3050 x 1550 13,46 / 23,86 9470x5000x3110(WP) 2490

Note: (NP) = No Projector; (WP) = With Projector
