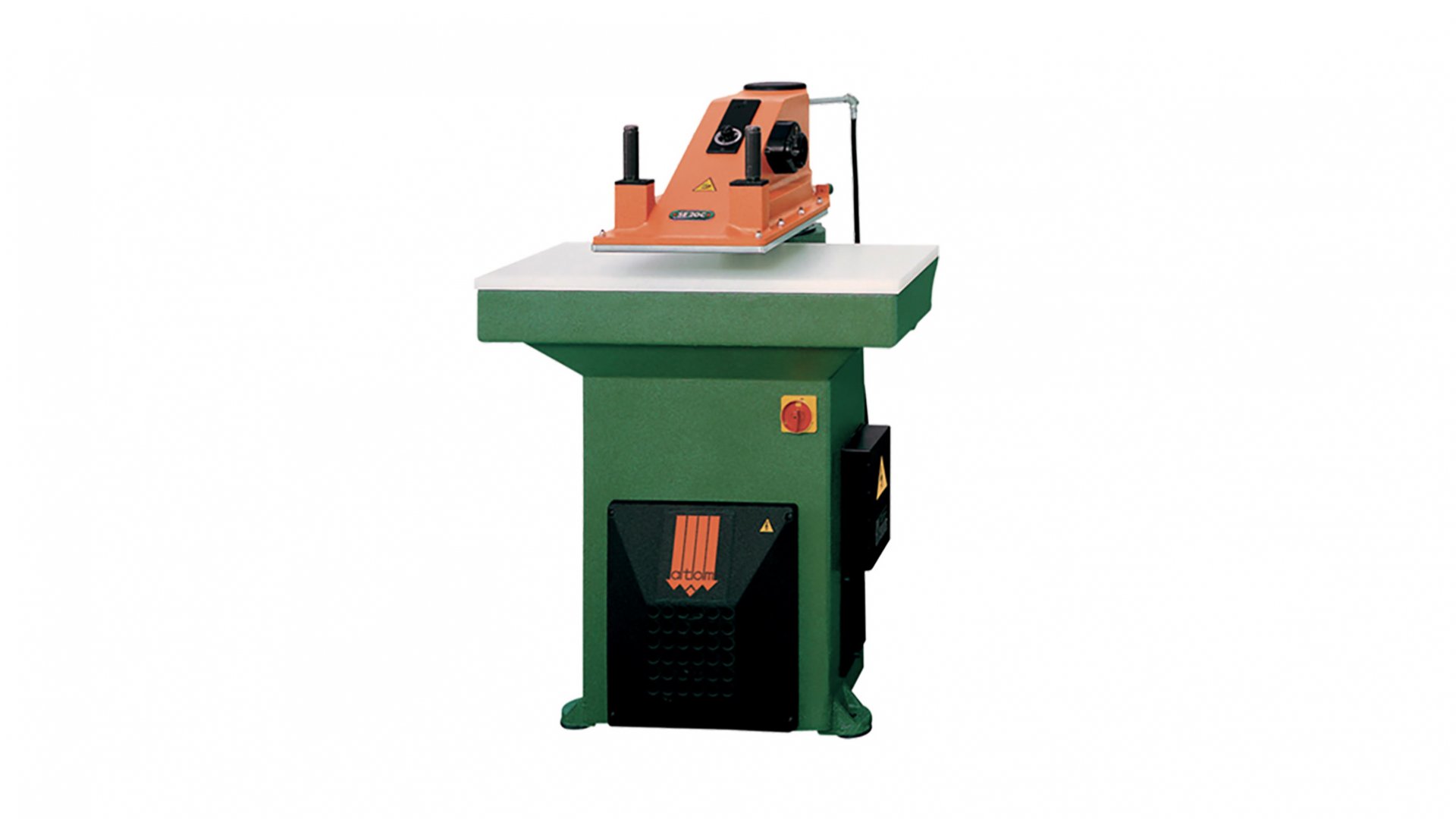

OILDYNAMIC CLICKING PRESSES WITH TURNING ARM
SE Series is a models with automatic stroke-end setting-up to cut with dies different heights without any adjustment, and single potentiometer.
The 70-year experience in designing and manufacturing clicking presses is a guarrantee of products of great reliability, low consumption, no mainteinance and quick return of investment. the exclusive hardware designed by atom ensures steady cut pressure all day long, maximum speed, cutting accuracy and arm rotation easiness with less operator’s fatigue.
SE Series is a models with automatic stroke-end setting-up to cut with dies different heights without any adjustment, and single potentiometer.
Technical Data
| MODEL | CUTTING TABLE (MM) | ARM WIDTH (MM) | MAX. CUTTING POWER (T-KN) | SIZE (MM) | NET WEIGHT WITH OIL (KG) |
|---|---|---|---|---|---|
| SE8 | 600 x 300 | 300 | 8t – 78kN | 600x690x1330 | 430 |
| SE20C | 900 x 430 | 370 | 20t – 196kN | 900x870x1400 | 630 |
| SE20 | 900 x 450 | 370 | 22t – 216kN | 900x960x1425 | 880 |
| SE22 | 1200 x 500 | 500 | 22t – 216kN | 1200x1030x1425 | 1060 |
| SE24C | 900 x 450 | 370 | 25t – 245kN | 900×9601425 | 880 |
| SE24 | 1000 x 500 | 370 | 25t – 245kN | 1000x1010x1425 | 990 |
| SE25C | 900 x 450 | 500 | 25t – 245kN | 900x960x1425 | 900 |
| SE25 | 1000 x 500 | 500 | 25t – 245kN | 1000x1030x1425 | 1030 |
| SE25L | 1000 x 500 | 610 | 25t – 245kN | 1000x1030x1425 | 1050 |
